This is the ideal solution if you would like to upgrade the remotes you use or you can no longer buy your original gate or garage door remote.
The GRX 2 Channel 868mhz receiver can be connected to virtually all gate and garage door systems using only 2 wire connections‚ You can even connect the two contact wires directly to your bell push button if you have one. If you are unsure just let us know the system you are connecting to and we can confirm which terminal connections to use.

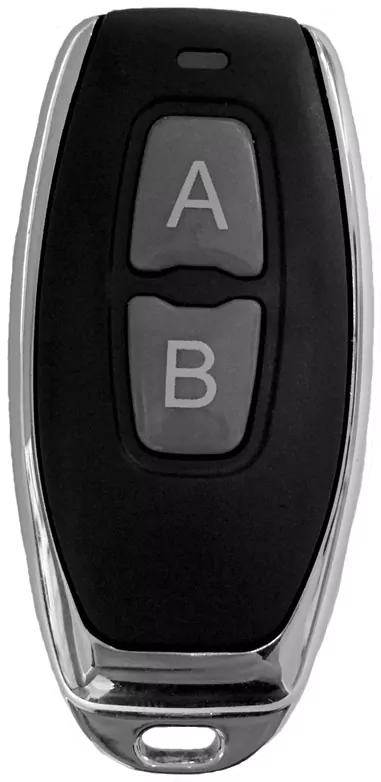

Fitting the GRX Receiver will enable you to use the stylish GR2000-TX2 remote (one included) to operate your door or gate with the added bonus that and existing remotes will not be affected. Up to 200 remotes can be added.
With 2 channels and 2 relays as standard the GRX has the possibility of controlling 2 different systems.
Comes complete with power supply which is simply plugged into your standard mains 3 pin plug or if needed this can be removed and your control board power supply used.
Please call us if you need any advice. Full instructions are included.
Specifications:
Input Voltage: 12 - 24 Volt AC or DC
Channels/ Relays: 2 Normally Open Relays both with options for Monostable (pulse) & Bistable (latching)
Remote Memory Capacity: 200 Remotes
Input Power: 0.4W
Working Frequency: 868.35Mhz
Dimensions:
Receiver Enclosure: 8cm x 5.5cm
GR2000-TX2 Remotes: 6cm x 3cm
If you already have our receiver kit installed and wish to purchase extra remotes please Click Here.
