| Shipping Index | 1 |
| Gate Type | Swing Gate |
| Max Weight Per Gate | 800KG |
| Max Length Per Gate | 3500MM |
| Above Or Underground | Under Ground |
| Max Opening Angle | 180 Degrees |
| Motor | Hydraulic |
| Locking Method | Opening and closing hydraulic lock |
| Motor Voltage | 230V |
| Gate Speed | 24 Seconds 90 Degrees |
| Duty Cycle | Very - Intensive |
| Protection Rating | IP 67 |
| Category | Swing Gate Motor |
BFT Sub EG Gate Motor
£ 1,014.45£ 845.38 excl tax
manufacturer:
bft
motor-type:
underground
BFT Sub EG Underground Swinging Gate Motor
Technical Information:
Motor Type: Hydraulic underground
Operating Voltage: 230v
Max Leaf Length: 2.5m
Non-locking, 180° operation

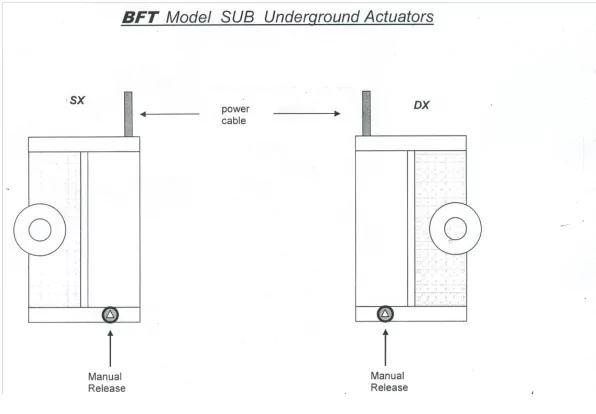

These motors are either SX or DX, depending where the manual release and cable are located on the motor.
To determine whether you need an SX or DX please take a look at the diagram on the photo to the left, or alternatively, give us a call and we will be happy to assist.
