AES E-loop mini-Domestic loop kit PRESENCE MODE.
Introducing the AES e-LOOP Mini Domestic loop kit, a wireless vehicle detection system designed for low-traffic, single residential settings. This innovative solution offers seamless integration with your existing gate controller, providing a convenient and efficient way to open gates without the need for complex wiring. The e-LOOP Mini is compact, measuring just 120mm x 120mm x 30mm, making it easy to install without disrupting your home’s aesthetic. Powered by standard 1.5V AA lithium batteries (included), it boasts an impressive battery life of 3-4 years, ensuring long-lasting, hassle-free operation. With a range of up to 50 meters, it provides reliable gate access control from a distance. The system’s high-security 128-bit encryption guarantees the safety of your property, while the static load capacity of 2.5 tonnes ensures durability. Whether you're looking for convenience, security, or ease of installation, this mini E-loop kit delivers all the benefits of advanced technology in a compact and user-friendly design.AES E-loop mini-Domestic MAIN FEATURES:
- Designed for Residential Use: Perfect for low-traffic, single residential settings
- Wireless Operation: Eliminates the need for complex wiring, connecting seamlessly to existing gate controllers via a wireless transmitter.
- Compact Design: Small dimensions of 120mm x 120mm x 30mm for easy installation without disrupting aesthetics.
- Long Battery Life: Uses standard 1.5V AA lithium batteries (included) with a lifespan of 3-4 years.
- Reliable Range: Effective detection range of up to 50 meters (yards).
- High Load Capacity: Supports a static load capacity of 2.5 tonnes (2500kg).
- Enhanced Security: Features high-security 128-bit encryption for added protection.
TECHNICAL SPECIFICATIONS of AES E-loop mini-Domestic:
- Frequency: 433.39Mhz
- Power: 4 * 3.6 V 2700ma
- Environment: Designed for above ground mounting
- Protection: IP68 Ingress
- Operating Temp: -40° to 80°C
- Standby Power: 14μA
- Activation Power: 50μA
KIT INCLUDES:

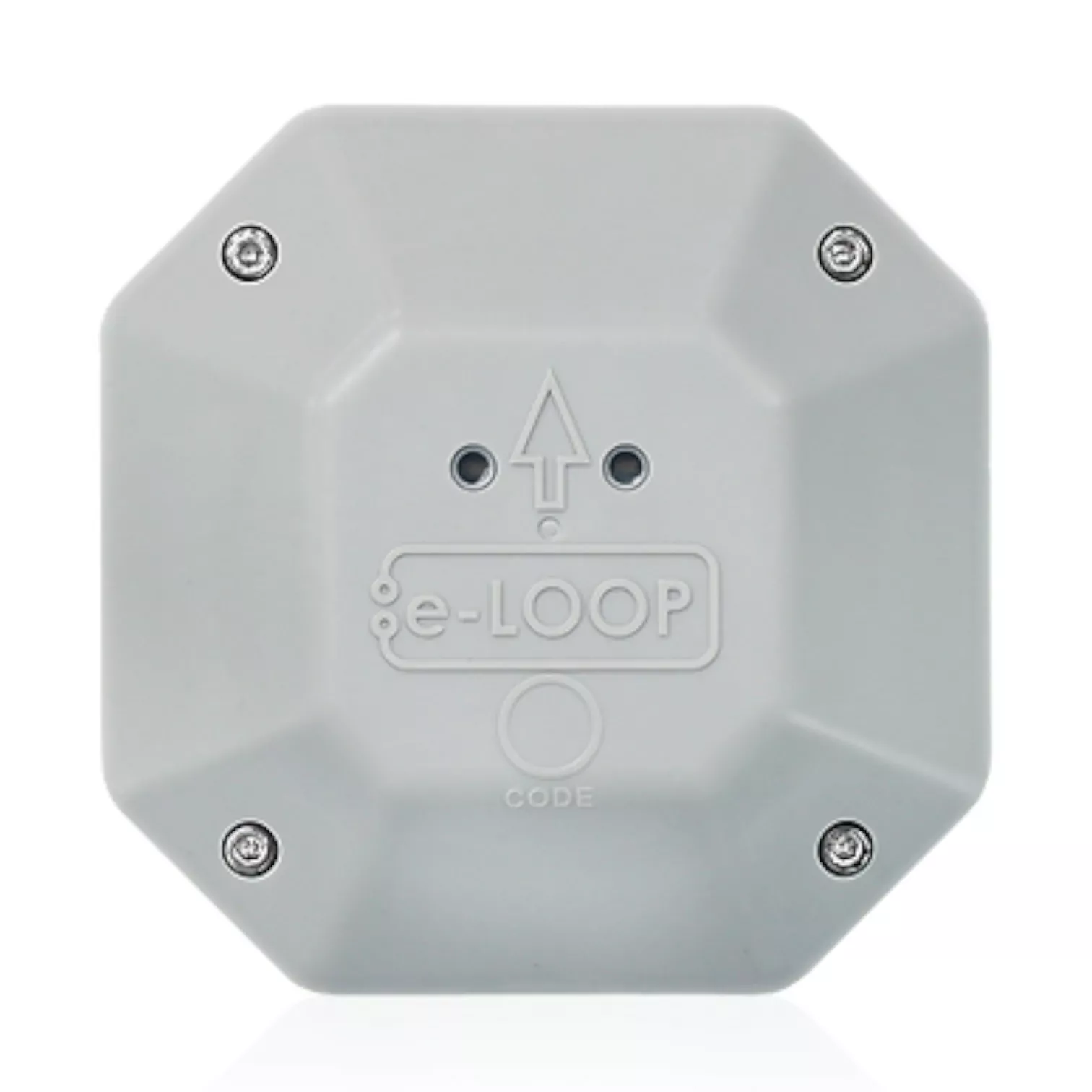

- 1 x e-Loop Mini Presence mode.

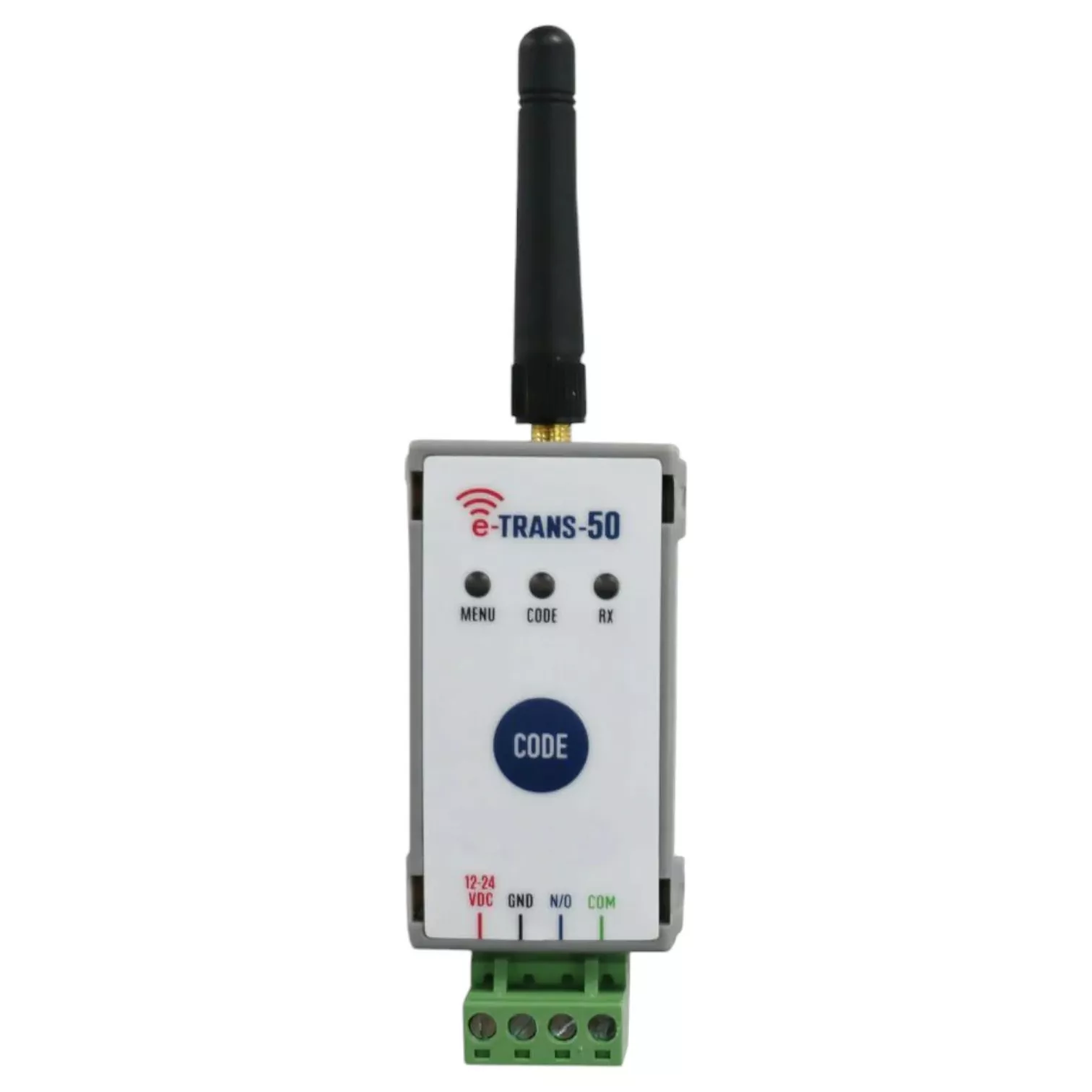

- 1 x E-Trans 50.
- 2 x Concrete fixing bolts
